Generic 7" 4 Wire Resistive Touch Screen For Car Navigation System
With ITO Glass To ITO Film Structure
Specifications:CT0681769
Drawing 2017.11.pdf
| Structure | G+F |
| Wiring Method | FPC |

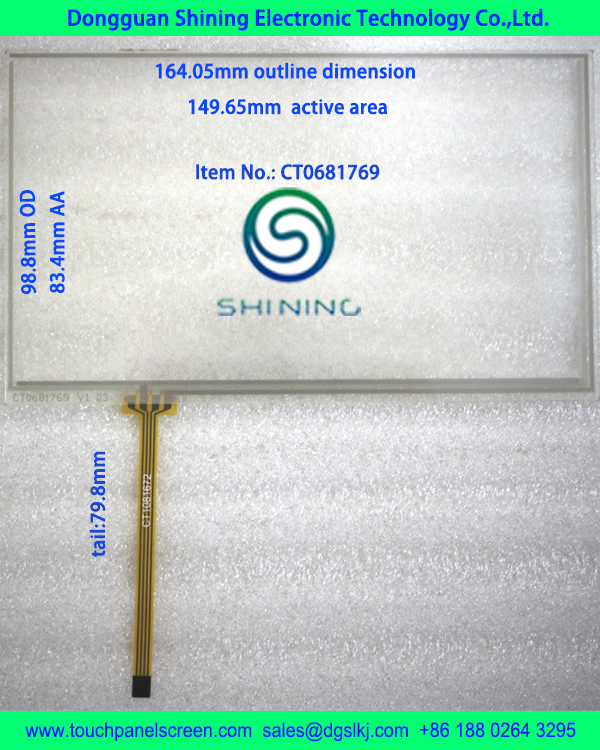

| OD | 164.05*98.8mm |
| AA | 149.65*83.4mm |
| Transmittance | >80% |
| Linearity | <2.0% |
| Supply Voltage | 3.3V DV, 5V DC |
| Chattering Time | <10 MS |
| Operating Temperature | -20℃-70℃, <90%RH |
| Storage Temperature | -30℃-85℃,<90%RH |
| Operating Force | 60-100g |
| Insulation Resistance | >20ΜΩ, 25V(DC) |
Applications:
| Touch-Function Products | LCD Module |
| Consumer Devices | Mobile Phone, Tablet PC, PDA, MP3, MP4, PMP, Gaming, Web PAD, etc. |
| Automotive, Medical, Industrial | Industrial Controls, Equipment Panels, Medical Device, GPS
Navigation, Rearview Mirror Camera, etc. |
| House-hold Electronics, Financial, Entertainment System, Office
Equipment | POS, ATM, Self-Serve Kiosk, Access Control, Door Phone,
Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc. |
