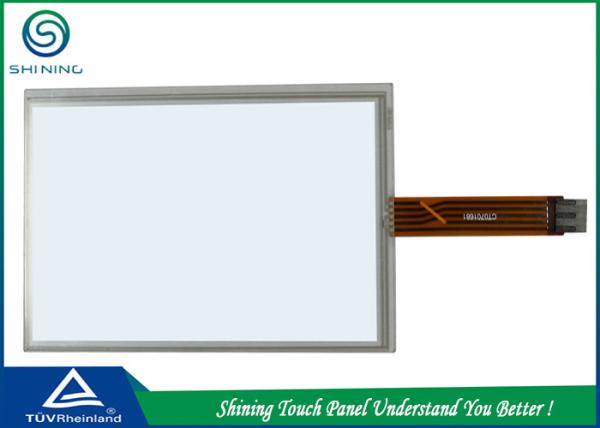

    5 Wire Widescreen Industrial Touch Screen 7 Inches ITO Film Resistive Touch

    Ask Lasest Price
    Brand Name : KENSHIN
    Model Number : CT0701681V2
    Certification : ROHS/REACH
    Price : Negotiable
    Payment Terms : T/T or L/C
    Supply Ability : 1,000pcs per day
    Delivery Time : 15 working days after receiving your deposit or L/C
    • Product Details
    • Company Profile

    5 Wire Widescreen Industrial Touch Screen 7 Inches ITO Film Resistive Touch


    5 Wire Widescreen Industrial Touch Screen 7 Inches ITO Film Resistive Touch


    Specifications:


    StructureF + G
    ConnectorFPC
    Transmittance>83%
    Touch Life Span>3,000,000 times
    Scoring Life Expectance>1,000,000 times
    Linearity<1.5%
    Supply Voltage3.3V DV, 5V DC
    Chattering Time<10 MS
    Operating Temperature-20℃-70℃, <90%RH
    Storage Temperature-30℃-80℃,<90%RH
    Insulation Resistance>20ΜΩ, 25V(DC)

    Model No.: CT0701681V2

    OD(Outline Dimension): 164.50*103.00mm

    VA(Viewing Area): 154.50*93.34mm

    AA(Active Area):152.40*91.44mm

    Linearity: <1.5%

    Operating Force: 40g-120g

    Optical Clarity: >83%


    Description:


    1. Resistive Technology, Passive Technology

    In electrical engineering, resistive touchscreens are touch-sensitive computer displays composed of two flexible sheets coated with a resistive material and separated by microdots. Analogue type consists of transparent electrodes without any patterning facing each other and analogue offered lowered production costs. When contact is made to the surface of the touchscreen, the two sheets are pressed together. On these two sheets there are horizontal and vertical lines that, when pushed together, register the precise location of the touch. Because the touchscreen senses input from contact with nearly any object (finger, stylus/pen, palm) resistive touchscreens are a type of "passive" technology.


    2. PRC National Standard High Quality Manufacturer

    Audited by TUV, our factory complies with the national standard of high quality manufacturer through the following aspects: genuine manufacturer, dedicated export team, research and development capability, trustworthiness and reputation, high quality products, considerable company size, social and environmental responsibility, customer service capability.


    In 2010, we passed ISO 9001:2008 International Management System and ISO 14001:2004 + Cor 1:2009 Environmental Management System.


    3. High Stability of Staff Makes High Stability of Quality

    Over 60% workshop workers have been working in our company since 3 years ago and it is more than 80% of the management. The philosophy of people-oriented management makes all staff like one.


    Additionally, our sales team are able to offer 4 languages service, including Japanese, Korean, English and Chinese. And we are always trying our best to support our clients.


    4. Dust-free Workshops and Specialized Equipment

    In the line of manufacturing touch panels, dust-free workshops and specialized equipment can basically guarantee the quality, especially the cleanliness of both resistive touch panels and capacitive touch panels.


    10000-class dust-free workshops cover an area of over 2000 square meters, in which more than 200 square meters is equipped with100-class dust-free workshops. Moreover, some key equipment is introduced from Taiwan, such as IR ovens, Laser machines, etc.


    5. Brand Raw Materials Only

    In order to produce satisfactory touch panels, we only use brand materials. In this case, our production has high efficiency.


    Raw MaterialSupplier
    ITO FilmCSG HOLDING

    ITO Glass

    CSG HOLDING or TOKEN
    Cover Lens / GlassAGC GROUP
    Conductive Silver PasteASAHI or INKTECH
    Printing InkSEIKO
    OCA3M or LG

    6. Detail Makes Difference

    Perfect details make our products perfect. Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm.


    Silk-printing, laminating, cutting, FPC bonding etc. are all operated by automatic machines and skill-experienced workers. Almost everything is under our control.


    7. 100% Inspection

    Every stage of production process is focused on a lot to avoid mistakes and regarding the cleanliness of appearance and function, we carry out 100% inspection. What we care most is that each piece touch panel delivered from our warehouse has to meet our clients’ requirements.


    8. Safe Packaging and Delivery

    Up till now, every order of our touch panels has reached our clients abroad successfully without any damage. We pack touch panels with blister tray or foam box as requested first, certainly, there is a piece of protective film on it; and second, put into a bag and make it vacuum; lastly, put into a carton box.


    Applications:


    Touch-Function ProductsLCD Module
    Consumer DevicesMobile Phone, Tablet PC, PDA, MP3, MP4, PMP, Gaming, Web PAD, etc.
    Automotive, Medical, IndustrialIndustrial Controls, Equipment Panels, Medical Device, GPS Navigation, Rearview Mirror Camera, etc.
    House-hold Electronics, Financial, Entertainment System, Office EquipmentPOS, ATM, Self-Serve Kiosk, Access Control, Door Phone, Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc.
