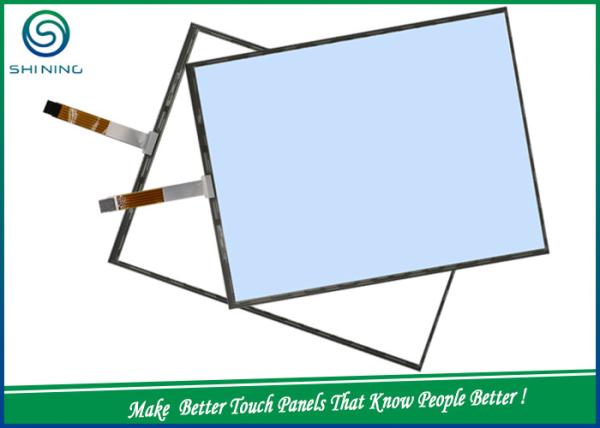

15'' 5 Wire Resistive Touch Screen Manufacturer With ODM OEM
Ability For POS Terminal , Industrial Equipment
Specifications:
1. Size Drawing
2. Instructions:
Application
Quality of Shining's resitive touch panel is superb and suitable
for low cost solution. Suitable for GPS, medical, light industrial
device,POS, portable sport devices, access control terminals,
portable medical devices, LCD and LED touch monitors, all-in-one
PC,home appliances and other fields.
| Touch-Function Products | LCD Module |
| Consumer Devices | Mobile Phone, Tablet PC, PDA, MP3, MP4, PMP, Gaming, Web PAD, etc. |
| Automotive, Medical, Industrial | Industrial Controls, Equipment Panels, Medical Device, GPS
Navigation, Rearview Mirror Camera, etc. |
| House-hold Electronics, Financial, Entertainment System, Office
Equipment | POS, ATM, Self-Serve Kiosk, Access Control, Door Phone,
Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc. |
Description:
1. Brief Introduction of 5-Wire Resistive Touch Panel
Structure of 5-Wire Resistive Touch Panel is the same with 4-Wire
Resistive Touch Screen, including top layer ITO film and bottom
layer ITO film or glass. The bottom layer measures both X and Y
coordinates and the top layer applies only voltage. When panel is
touched,both conductive layers of the top film and bottom glass
make an electrical contact. The controller will get the X and Y
coordination by calculating the voltage of the touching point.
Since the top layer only plays common sensor,the touch panel will
be working even the top film is damaged or scratched so the 5-Wire
touch screen has longer life expectancy than 4-Wire touch screen.
Superior durability and reliability with touch life over 30 million
times.
2. PRC National Standard High Quality Manufacturer
Audited by TUV, our factory complies with the national standard of
high quality manufacturer through the following aspects: genuine
manufacturer, dedicated export team, research and development
capability, trustworthiness and reputation, high quality products,
considerable company size, social and environmental responsibility,
customer service capability.
In 2010, we passed ISO 9001:2008 International Management System
and ISO 14001:2004 + Cor 1:2009 Environmental Management System.
3. High Stability of Staff Makes High Stability of Quality
Over 60% workshop workers have been working in our company since 3
years ago and it is more than 80% of the management. The philosophy
of people-oriented management makes all staff like one.
Additionally, our sales team are able to offer 4 languages service,
including Japanese, Korean, English and Chinese. And we are always
trying our best to support our clients.
4. Dust-free Workshops and Specialized Equipment
In the line of manufacturing touch panels, dust-free workshops and
specialized equipment can basically guarantee the quality,
especially the cleanliness of both resistive touch panels and
capacitive touch panels.
10000-class dust-free workshops cover an area of over 2000 square
meters, in which more than 200 square meters is equipped
with100-class dust-free workshops. Moreover, some key equipment is
introduced from Taiwan, such as IR ovens, Laser machines, etc.
5. Brand Raw Materials Only
In order to produce satisfactory touch panels, we only use brand
materials. In this case, our production has high efficiency.
| Raw Material | Supplier |
| ITO Film | CSG HOLDING |
ITO Glass | CSG HOLDING or TOKEN |
| Cover Lens / Glass | AGC GROUP |
| Conductive Silver Paste | ASAHI or INKTECH |
| Printing Ink | SEIKO |
| OCA | 3M or LG |
6. Detail Makes Difference
Perfect details make our products perfect. Silkscreen of our
analogue resistive touch panels and projected capacitive touch
panels has smooth surface, smooth line, uniform thickness and the
linearity is below 1.5%; the edge is smooth with tolerance below
0.1mm; minimum width of silver line and distance between lines is
0.15mm.
Silk-printing, laminating, cutting, FPC bonding etc. are all
operated by automatic machines and skill-experienced workers.
Almost everything is under our control.
